Maxsell Matrix 8300

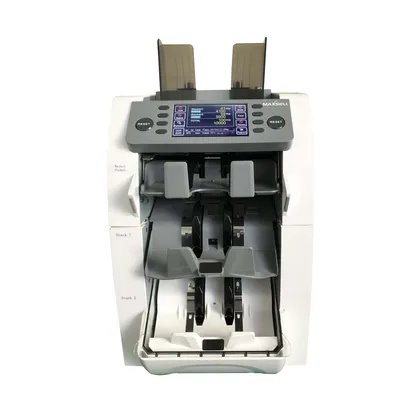

Maxsell Matrix 8300 – 2+1 Pocket Full Fitness Note Sorting Machine

The Maxsell Matrix 8300 is a fully automatic 2+1 pocket note sorting machine designed to meet the advanced cash management needs of banks, financial institutions, and bulk cash handling businesses. With superior counterfeit detection, fitness sorting, and intelligent design, it delivers unmatched speed, accuracy, and reliability for high-volume operations.

🔹 Key Specifications:

Usage/Application: Banks & Financial Institutions

Counting Speed: 800–1200 notes per minute

Hopper Capacity: 500–1000 notes (continuous feeding supported)

Stacker Capacity: 200 notes

Reject Pocket Capacity: 200 notes

Number of Pockets: 2 + 1

Note Size Supported: Length 100–182 mm | Width 50–85 mm | Thickness 0.075–0.15 mm

Noise Level: <60 dB

Power Supply: 100–240V AC, 50/60Hz, 3.0A

Power Consumption: ≤90W

Dimensions: 390 (L) × 310 (W) × 452 (H) mm

Weight: Approx. 30 kg

Interfaces: RS-232, USB, Printer, SD Card, LAN

Minimum Order Quantity: 1 Piece

🔹 Advanced Features:

Full Fitness Sorting – Sorts by denomination, face, orientation, and note condition (fitness, ATM-fit, soiled, taped, folded).

Accurate Serial Number Recognition – Captures, stores, and manages note serial numbers.

Double Face Image Recognition – Ensures high accuracy in sorting and verification.

Counterfeit Detection – Multi-technology detection via Thickness, IR, MT, FL, Image Analysis.

User-Friendly Operation – Dual-operator interface with large TFT color touch screen + rugged keypad.

Smart Maintenance – Easy front & rear access, built-in dustproof door, twin dust collector trays, and noise reduction system.

Upgradeable Software – Program downloading via SD Card, USB, or LAN for future currency updates.

Durable Design – Mechanical tape & thickness detection with reliable performance even under heavy loads.

✅ Benefits:

High-speed note counting & sorting with 2+1 pocket design for uninterrupted processing.

Ensures precise counterfeit detection and accurate fitness sorting.

Protects operators with dust-proof and noise-controlled design.

Compact footprint yet powerful enough for bulk cash handling.

Ideal for banks, NBFCs, currency exchange firms, and large corporates.

The Maxsell Matrix 8300 – 2+1 Pocket Full Fitness Note Sorting Machine is a future-ready cash handling solution, combining speed, accuracy, counterfeit protection, and ergonomic design for professional-grade performance.
